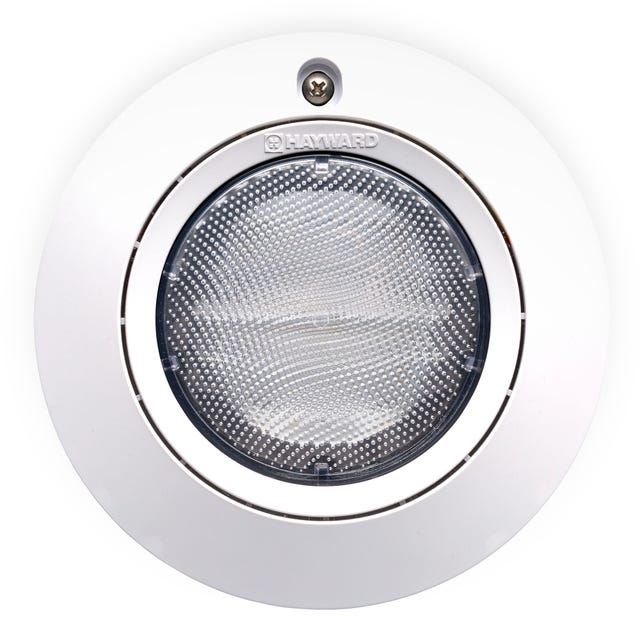

Luz LED de 1.5 in ColorLogic 320, cable de 100 ft

Hayward

SKU: LACUS11100

Lleva el color a todos los rincones de tu oasis en el patio trasero con las luces LED ColorLogic® 320.

Características

Las luces para piscinas, spas o decorativas ColorLogic 320 de 1.5 pulgadas proporcionan una coordinación total del color en todos los entornos acuáticos y una sincronización completa con todas las luces Universal ColorLogic. Estas luces, que cuentan con 10 colores fijos y 7 presentaciones que cambian de color, son ideales para escalones, burbujeadores, plataformas de bronceado y otras fuentes de agua. Accede a opciones adicionales de atenuación y ajustes de velocidad, mayor control y 10 colores adicionales con OmniDirect Mode™ emparejando cualquier luz autónoma ColorLogic de bajo voltaje con la automatización de Omni®.

Características y beneficios

  • La mejor solución para iluminación de bajo perfil para piscinas y spas o iluminación decorativa
  • Coordinación total del color en todos los entornos acuáticos
  • Sincronización completa con los colores y presentaciones Universal ColorLogic
  • 10 colores fijos y atractivos, y siete presentaciones que cambian de color
  • Luces ideales para escalones, chorros, burbujeadores, plataformas de bronceado, fuentes, etc.
  • 2 opciones de intensidad disponibles
  • Disponibles con longitudes de cables de 30, 50, 100 y 150 pies
  • Instalación en aplicaciones secas o húmedas
  • Instalaciones de bajo perfil de hormigón, fibra de vidrio y vinilo
  • Con certificación UL y cUL

El modo OmniDirect ofrece:

  • Navegación instantánea al color o la presentación de luces que desees sin tener que pasar por una secuencia
  • Capacidades de atenuación en incrementos del 20 %
  • Ajuste de velocidad para presentaciones de luces
  • Obtén acceso a 10 colores adicionales y más opciones de personalización para ocasiones especiales, como colores de universidades o equipos deportivos, o con temática de días festivos
  • Los productos EXPERT LINE solo pueden comprarse a través de tu profesional de piscinas o tienda local.  Se pueden aplicar exclusiones y otros términos y condiciones.
  • Garantías de piezas y mano de obra de más de 3 años*

* Cuando lo vende un socio Hayward Rewards®. Se pueden aplicar exclusiones y otros términos y condiciones.

Aplicación - Iluminación Piscinas
Marca Hayward
Canal Línea Expert
Longitud de cable - Iluminación 100 ft
GTIN 610377236058
Warranty - Labor 1 año
Material de terminación Termoplástico
Salida de lúmenes (brillo) 700
Cantidad de caja a granel 1
Cantidad de espectáculos - Iluminación No
Compatible con OmniDirect No
Cantidad por palé 70
Warranty - Parts 3 años
Tipo de piscina Para piscinas enterradas
Series de productos de iluminación ColorLogic 320
Dimensiones del envío 7 in x 11 in x 18 in
Pesos de envíos 8 lb
Submarca N/D
Tensión - Iluminación 12 V – 15 V
Vatios 23 W
Detalles de las piezas

Haz clic en el número de pieza del diagrama para mostrar los detalles.

Questions & Answers

15 answered question(s)

06/24/26

Q: My old colorlogic 320 is stuck on a burr inside the pipe. It is loose but won't pull out. I need to know the pipe thread size so i can screw some large enough on it that won't break so I can pull harder

A:
Hello, please use our website's dealer locator to find the closest Hayward Authorized Service Center(HASC). A HASC may be needed to address this issue.

By Hayward Support

06/24/26

Q: What is the price for this light and one that is just white light 100 ft

A:
Hello, we do not sell directly through our website. Please use our website's dealer locator to find your closest dealer. A Dealer can assist you with parts pricing and availability.

By Hayward Support

06/24/26

Q: Hi, I have three Colorlogic 320 lights in my pool, one light stopped working about a year ago and was replaced by a pool company under warranty, now the remaining two lights stopped working and appear to have water inside the bulbs. I've been told these lights have a defect and are covered under warranty. If so, how do I go about getting replacement lights without having to pay the $400 costs for each light?

A:
Hi, call our Tech Support Group for help with this issue at 908-355-7995.

By Hayward Support

06/24/26

Q: This is my 3rd pool light in 4 years, Now it looks like this light is burning out. I can not get the light to turn blue or purple. What can I do from here??

A:
Please use our website's dealer locator to find the closest Hayward Authorized Service Center(HASC). A HASC may be needed to troubleshoot this issue.

By Hayward Support

06/24/26

Q: I need to replace several of my pool lights. How can I tell what the model of the existing lights are, and which new Hayward lights are compatible with the ones that are still working?

A:
Hi, give our Tech Support Group a call for help with this issue at 908-355-7995.

By Hayward Support

06/24/26

Q: So I've had my lights for almost a year. One went out now the other light is out. Pool guy was supposed to work on getting them warranty covered but, still hasn't done anything. What at this point can I do if anything to get them replaced?

A:
Please use our website's dealer locator to find the closest Hayward Authorized Service Center(HASC). A HASC may be needed to troubleshoot this issue.

By Hayward Support

06/24/26

Q: Will one of these lights be enough to cover a square 8x8 spa?

A:
Here is a link to a document with information on beam coverage. https://hayward.com/media/akeneo_connector/asset_files/L/I/LITLEDWF21C_Lighting_WaterFeature_DesignGuide_bilingual_9fab.pdf

By Hayward Support

06/24/26

Q: Will color logic 320 fit regular wall return fitting

A:
Here is a link for an installation guide. https://hayward.com/media/akeneo_connector/asset_files/0/9/092533_RevB_157b.pdf

By Hayward Support

06/24/26

Q: I know I have 3 Hayward ColorLogic 320 lights, which 1 needs replacing. How can I find the model number or info on what the 3 different model numbers are for, Lacus, Lacun, and Lawus.

A:
Hello, Someone from our technical team will contact you shortly.

By Hayward Support

06/24/26

Q: Hello Can these lights be left in place under water over the winter- Southern Ontario. Thanks

A:
Yes, they can.

By Hayward Support

06/24/26

Q: What is the kelvin level on the white light setting?

A:
Here are the Kelvin ratings for all the white light modes. Cloud White 6500K Crisp White 12000K Pure White 5500K Warm White 3000K

By Hayward Support

06/24/26

Q: When you replace the Colorlogic 320 light, do you need to lower the water level below the light fixture hole or can it be installed in the water?

A:
Click on the link below for an installation guide. https://hayward.com/media/akeneo_connector/asset_files/0/9/092533_RevB_157b.pdf

By Hayward Support

06/24/26

Q: How long should a color 320 light lasts in the pool? My pool is less than three years old and one of my lights went out

A:
The LACUS11100 comes with a 3-year warranty. Please use our website's dealer locator to find the closest Hayward Authorized Service Center(HASC). A HASC can help you with replacing this light.

By Hayward Support

06/24/26

Q: What would cause this light to flicker on some colors and stay solid on others? For example, it stays solid on emerald, but other colors cause it to flicker.

A:
Please use our website's dealer locator to find the closest Hayward Authorized Service Center(HASC). A HASC may be needed to troubleshoot this issue.

By Hayward Support

06/24/26

Q: Can the LACUS11100 be configured for CL4.0 mode to sync with other ColorLogic 4.0 lights like the SP0527LED100?

A:
No, it cannot.

By Hayward Support
