Características

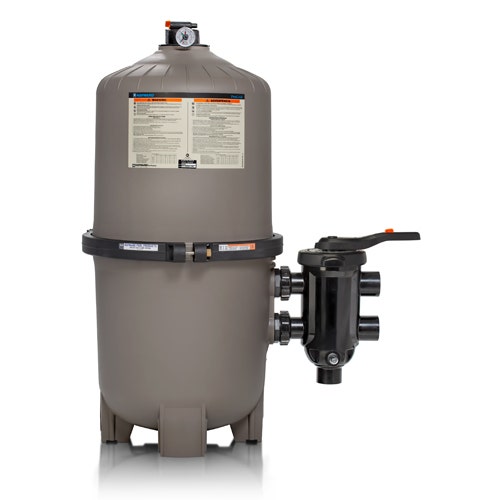

DEP 500 Series pleated element filters combine the convenient maintenance of a cartridge with the superior water clarity of DE technology. Los elementos de larga duración y fácil limpieza se pueden retrolavar o retirar y enjuagar rápidamente. Las válvulas y los juegos de uniones se venden por separado.

Características y beneficios

Los elementos fáciles de limpiar permiten reducir el tiempo de limpieza
La gran superficie prolonga el tiempo entre limpiezas
La abrazadera de una sola pieza, extrafuerte y a prueba de manipulación, permite un acceso rápido a los componentes internos sin obstaculizar las conexiones de las tuberías
El caudal es equivalente al de los filtros de cartucho de tierra de diatomeas y multielemento con rejilla, lo que facilita la instalación para una adaptación
La válvula de salida de aire manual de gran capacidad y de rápida liberación expulsa el aire con un rápido giro de un cuarto de vuelta de la palanca
Tanques de filtro confeccionados en un copolímero de vidrio reforzado duradero para satisfacer las exigencias de las aplicaciones y las condiciones ambientales más difíciles, como los sistemas de limpieza en aplicaciones enterradas
Las partes superior e inferior del tanque son oscilantes y permiten el acceso a los elementos plisados de forma rápida y sencilla
Inlet diffuser elbow distributes flow of unfiltered water evenly to all filter elements and provides even distribution of DE to elements
Las prácticas opciones de válvulas y tuberías permiten un control personalizado
Tuberías internas de flujo completo de 2 in para ofrecer menor resistencia al flujo y máximo rendimiento

Los productos EXPERT LINE solo pueden comprarse a través de tu profesional de piscinas o tienda local. Se pueden aplicar exclusiones y otros términos y condiciones.
Garantías de piezas y mano de obra de más de 3 años*

* Cuando lo vende un socio Hayward Rewards®. Se pueden aplicar exclusiones y otros términos y condiciones.

Certificación de NSF

Los servicios integrales de inspección, pruebas y certificación de NSF garantizan que nuestros productos cumplan con todos los principales códigos de salud estatales y provinciales, así como con los códigos de construcción y construcción de modelos.

Aplicación	Construcción nueva, renovación, mercado de posventa
Marca	Hayward
Cartucho	No
Canal	Línea Expert
Área de filtración eficaz	100 ft²
Tipo de filtro	DE
GTIN	610377379250
Warranty - Labor	1 año
Cantidad de caja a granel	1
Cantidad por palé	8
Warranty - Parts	3 años
Tipo de piscina	Para piscinas enterradas
Manómetro	No
Dimensiones del producto	46.5 in x 24 in x 24 in
Altura del producto	46.5 in
Longitud del producto	24 in
Peso del producto	92 lb
Ancho del producto	24 in
Caudal de diseño público	150 g. p. m.
Cantidad	1
Series de productos de filtros	DEP 500
Dimensiones del envío	47.8 in x 23.1 in x 24.6 in
Pesos de envíos	83 lb
Submarca	N/D
Rendimiento - 10 horas	90,000 g. p. m.
Rendimiento - 8 horas	72,000 g. p. m.
Cantidad de elementos filtrantes	4
Válvula incluida	No incluida
Capacidad de tierra de diatomeas	10 lb

Questions & Answers

13 answered question(s)

Bob Simpson Verified User

06/24/26

Q: Is there a bulk head fitting that I can use to use the filter without the select-a-flow valve. Thanks

A:

there is not. These filters are designed for use with a multiport valve.

By Hayward Support

Jason Verified User

06/24/26

Q: I have bought a new house and the seller is not cooperating, I have doubts about the pool service people here, so I'm trying to arm myself with some knowledge. I have three questions. I'm sure it's a Hayward filter here but most of the labels have worn off so I can't tell what model it is. It's beige in color, looks exactly like a DEP 500. Is that for sure the model it is? The clamp on it looks like a Pentair one, with the spring bolt assembly, did you guys use that at some stage, or is that a hack job? Last question, the gauge reads ~ 20psi when off, and ~ 50psi when running, the glass on the gauge is broken, so the gauge is not necessarily trustworthy, does it make sense that actually the unit is ~ 0psi when off and therefore ~30psi when running, or is it actually 50psi when running? Thanks.

A:

Hi, we have several filters that are similar in size to the DEP500. We have not used a spring retainer in many years on any of our filters. The pressure gauge seems to be damaged and should be replaced. They are minimal cost. We would recommend you contact...

By Hayward Support

Gene Verified User

06/24/26

Q: When replacing the rubber gasket, do you need to glue the gasket to the six point Vari Flo 2inch?

A:

Hi, for help with this contact a local Hayward Authorized Service Center. You can find a list of them by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

Frank Verified User

06/24/26

Q: How do u clean a cartridge filter since no backwash is needed

A:

Hi, with cartridge filters you remove the cartridge from the filter body and clean it.

By Hayward Support

Frank Verified User

06/24/26

Q: What’s the difference between cartridge and d e filters

A:

DE filters use diatomaceous earth to coat a grid that then captures debris from the pool. Cartridge filters use the material that the cartridge is made up to capture the debris. DE filters are very good at capturing small particles of debris, but require...

By Hayward Support

Lonnie Arnold Verified User

06/24/26

Q: Price of hayward depending 500 series pleated element d.e. filter

A:

Hi, we do not sell direct, but you can find a list of local Hayward Authorized Dealers by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

John Verified User

06/24/26

Q: I have an old (35+ years) pool, approx 20 x 40'. A Hayward DE filter (I don't see the model number), well past its life expectancy, with heavily worn filter grids. Is there a cost effective replacement you can suggest? Thanks.

A:

Hi, filtration needs vary with location, and bather load, but in general a DE4820 should be adequate. Contact a local Hayward Authorized Dealer for further assistance in choosing the right filter for your location. You can find a list of them by clicking...

By Hayward Support

song jeong il Verified User

06/24/26

Q: Hi! i'm song jeong il. from s.Korea I want to buy a DE-filter. Is there a Korean sales agency? Please provide contact information. also. Please tell me the contact information of a place where I can purchase it overseas. (e-mail address)

A:

Hi, someone from our International group will be in touch via email.

By Hayward Support

Tom Davidson Verified User

06/24/26

Q: We have an old Hayward DE filter, I’m looking for two t bolts to replace stripped bolts, think quarter inch. Where can I purchase? TY

A:

Hi, someone from our tech support group will be in touch via email.

By Hayward Support

Jack Darcy Verified User

06/24/26

Q: In a 32 gallon garbage can ,how many gallons of muriatic acid are necessary to clean filter screens thoroughly?

A:

Hi, here is the cleaning recommendation from the manual for this filter: CLEANING ELEMENT CLUSTER The filter element cluster can be cleaned by washing inside and outside with a garden hose. After hosing filter element cluster, for best results, carefully...

By Hayward Support

John Verified User

06/24/26

Q: Sorry, but this is an expensive item hense the questions. Does the W3C5030 come in Beige or Black? I like Beige.

A:

Hi, the W3C5030 is black only.

By Hayward Support

John Verified User

06/24/26

Q: Ok, before I purchase the Haywood W3C5030, can I use my old Haywood, DE Control Valve. Works fine. I understand not to use the backwash on it.

A:

Hi, cartridge filters do not require a control valve. They are designed to be plumbed directly. Cleaning a cartridge filter requires removing the elements from the filter, so no backwashing is required.

By Hayward Support

John Verified User

06/24/26

Q: If I buy the W3C5030, can I use DE with it? I know it says you don't have to use it. But, would it work if I use it anyway?

A:

Hi, the W3C5030 cartridge filter is not designed for use with DE material. If you would like to use DE for filtering I would suggest the DEP500 series of filters, or one of our other DE filters. You can find a local dealer for these on our website Hayward...

By Hayward Support
